WT30 – 14000L Water Truck Module | Civil Spec | Suits 6x4 Cab Chassis

Short Description

Packaged WT30 14000L Civil Spec Water Truck Module – engineered for 6x4 cab chassis applications. Built tough with 350-grade steel, hydraulic pump systems, interchangeable spray points, Australian-made cannon control, and gravity dump options. ADR, VSB6, and Civil compliant. Chassis excluded.

Product Description

The WT30 Civil Spec Water Truck Module is designed to deliver high-performance dust suppression and bulk water cartage in civil construction environments. Engineered for long service life, with a robust electric-over-pneumatic control system and integrated safety features, it sets the benchmark for operational reliability and class.

Please note: Cab chassis is not included. Images are for demonstration purposes only. Final design may vary depending on selected options and chassis compatibility.

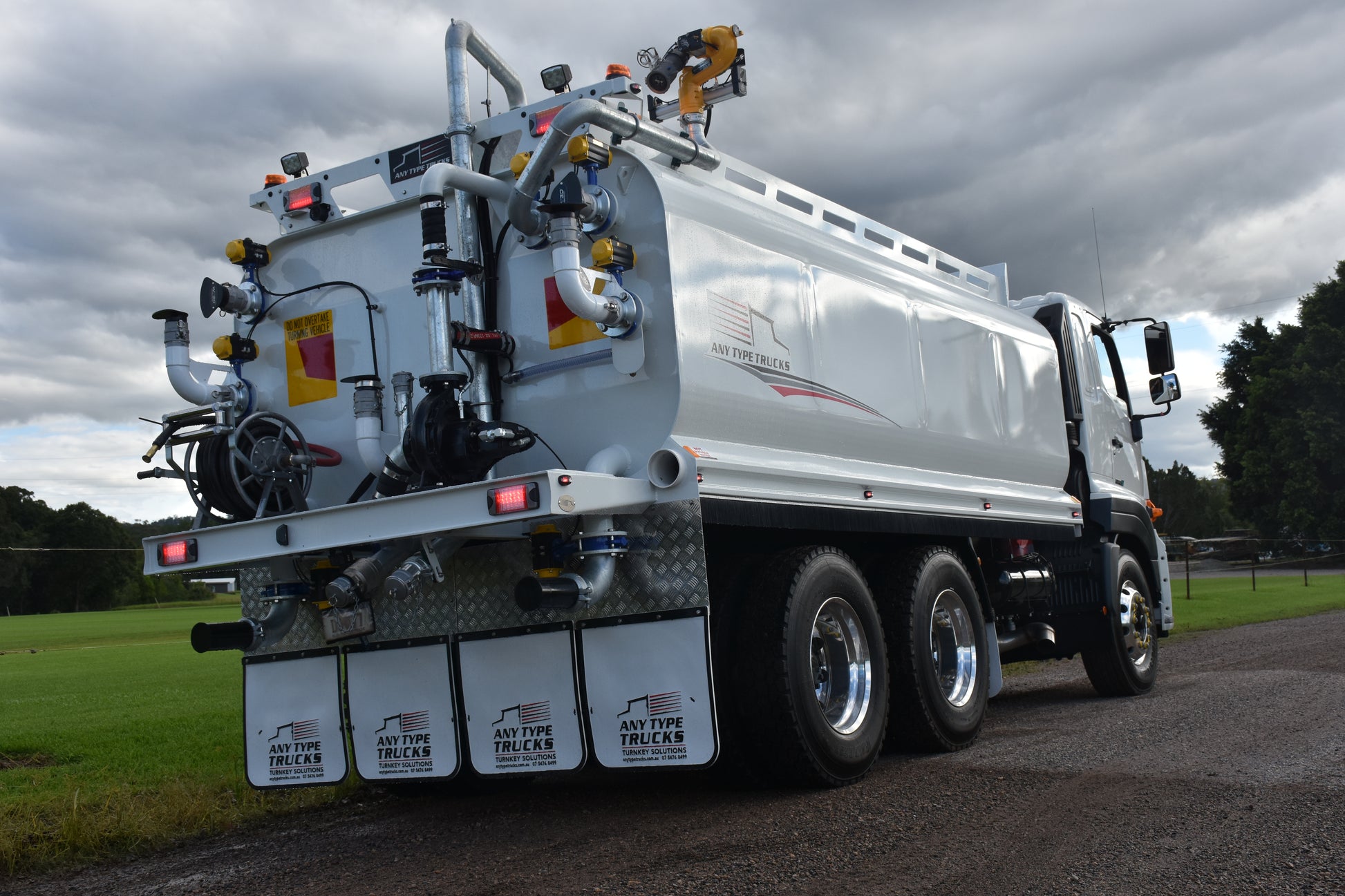

Tank Structure

• 14000L capacity (nominal)

• Fabricated in 6mm 350-grade steel or equivalent

• Internally baffled for fluid stability

• One 450mm roof-mounted manhole with internal safety grate

• Fully grit-blasted and coated with two-pack polyurethane finish

Pump and Fill Systems

• PTO-driven hydraulic centrifugal pump rated at 3500 LPM or more

• Three-Way Fill System:

  • Top fill funnel

  • Dam suction fill with inline mesh strainer

  • Hydrant fill pipe with integrated air gap for backflow prevention

• Front-mounted sight gauge with float indicator showing safe fill levels (SFLs)

• Full-drain valve setup for complete tank emptying

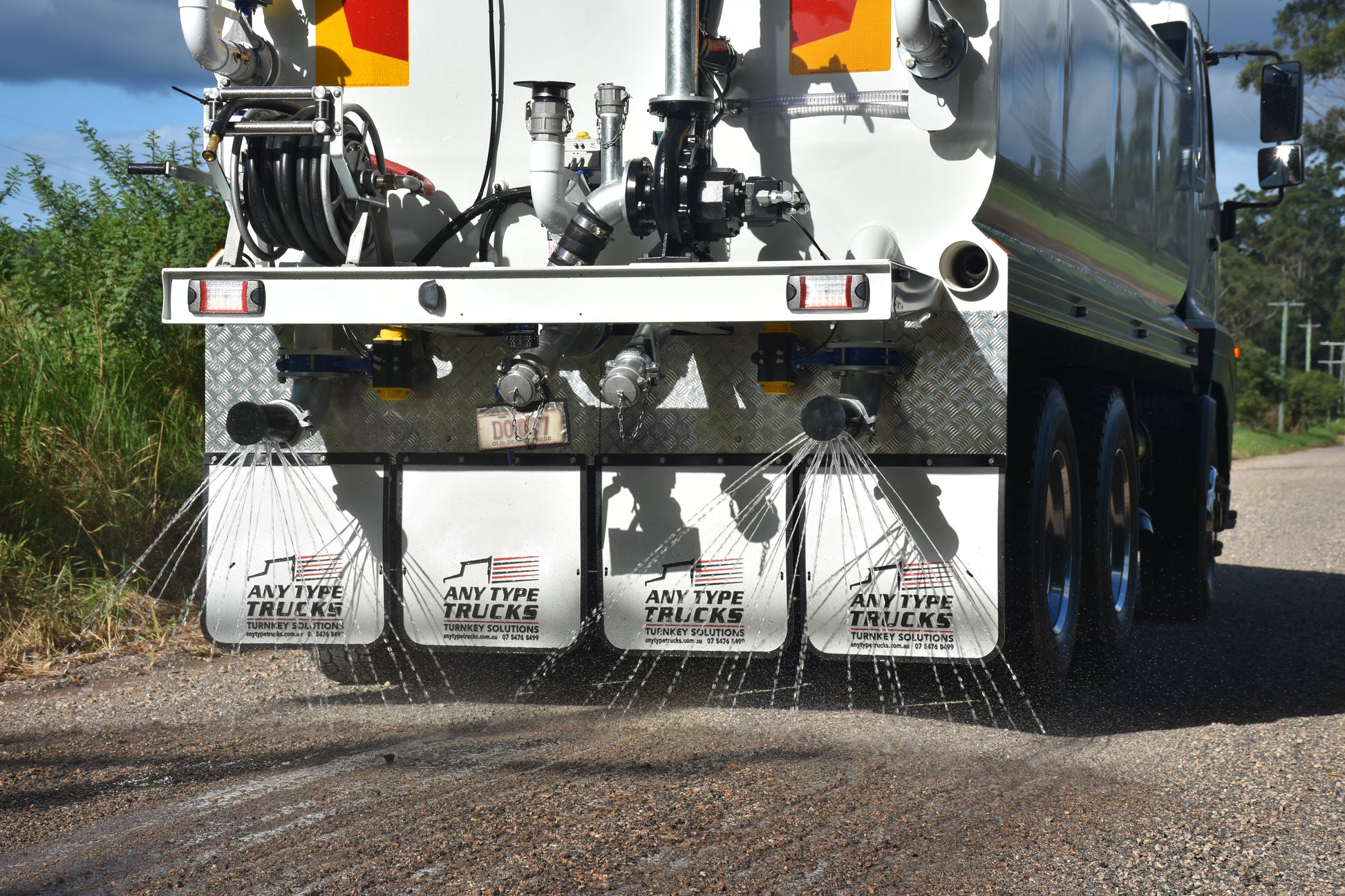

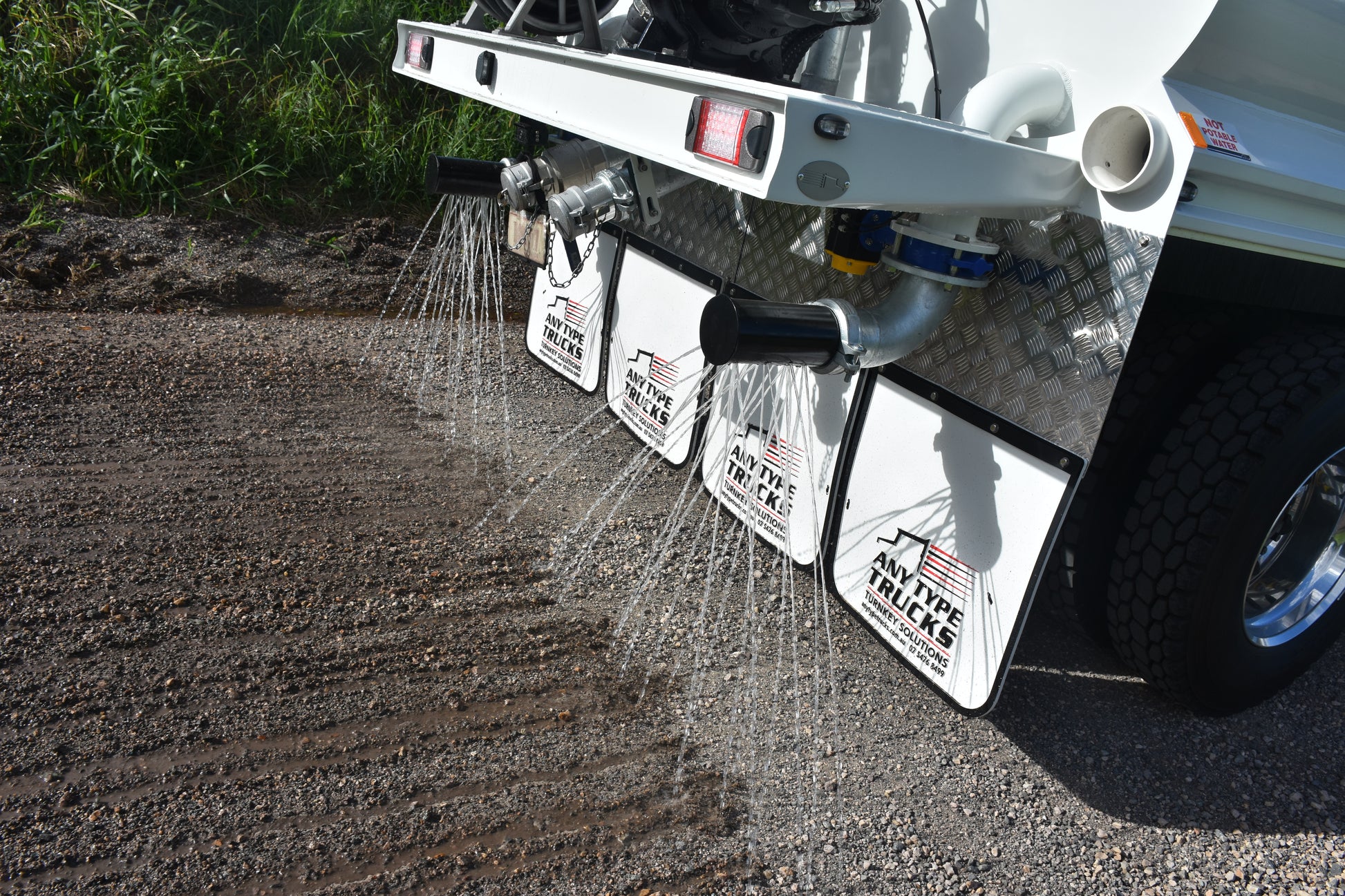

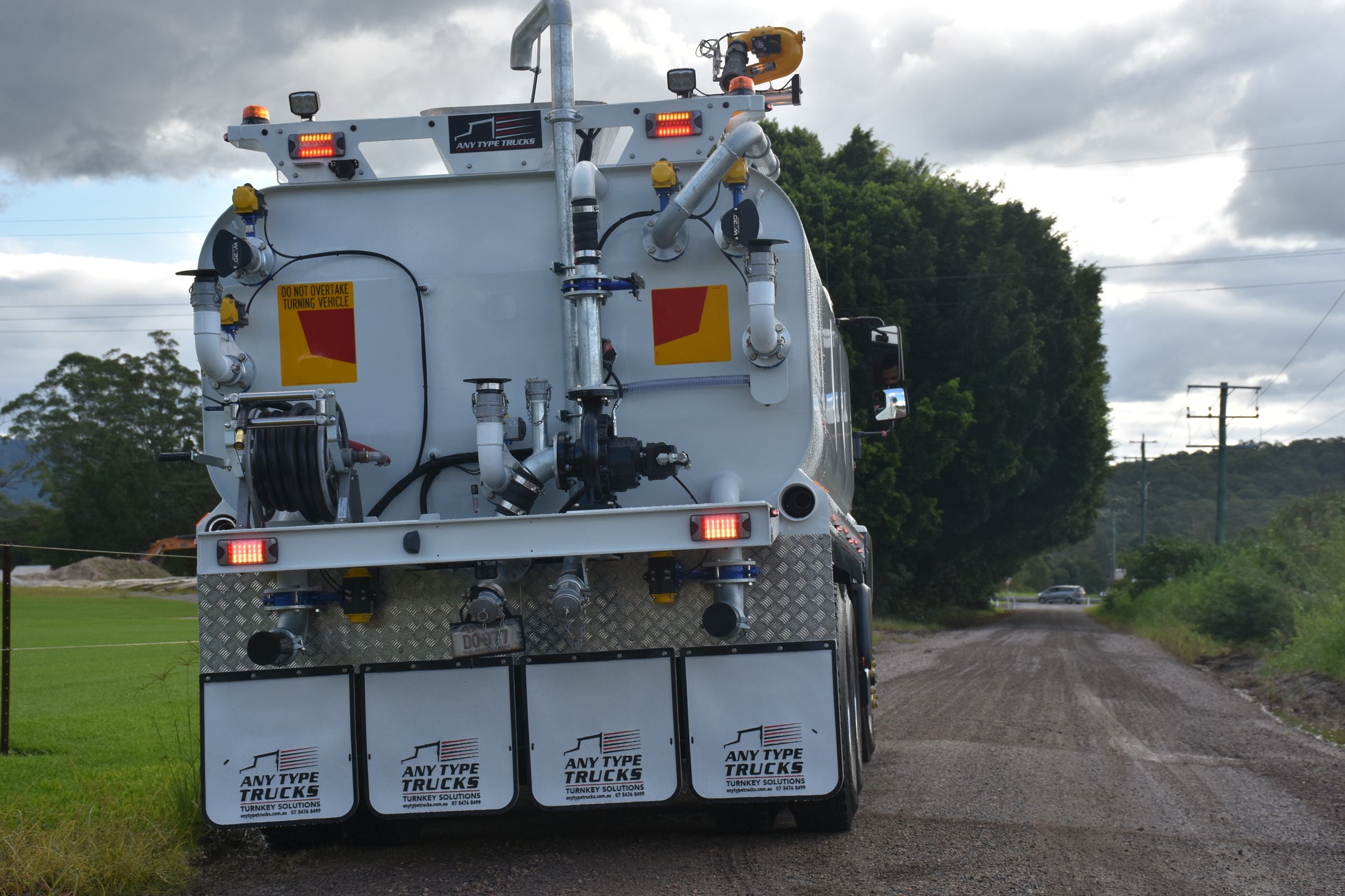

Spray Systems

• 3 x 3-inch camlocked interchangeable pressure sprays

• 25m 1-inch hose reel with adjustable nozzle

• 4-inch gravity dumps with interchangeable fan or dribble bars

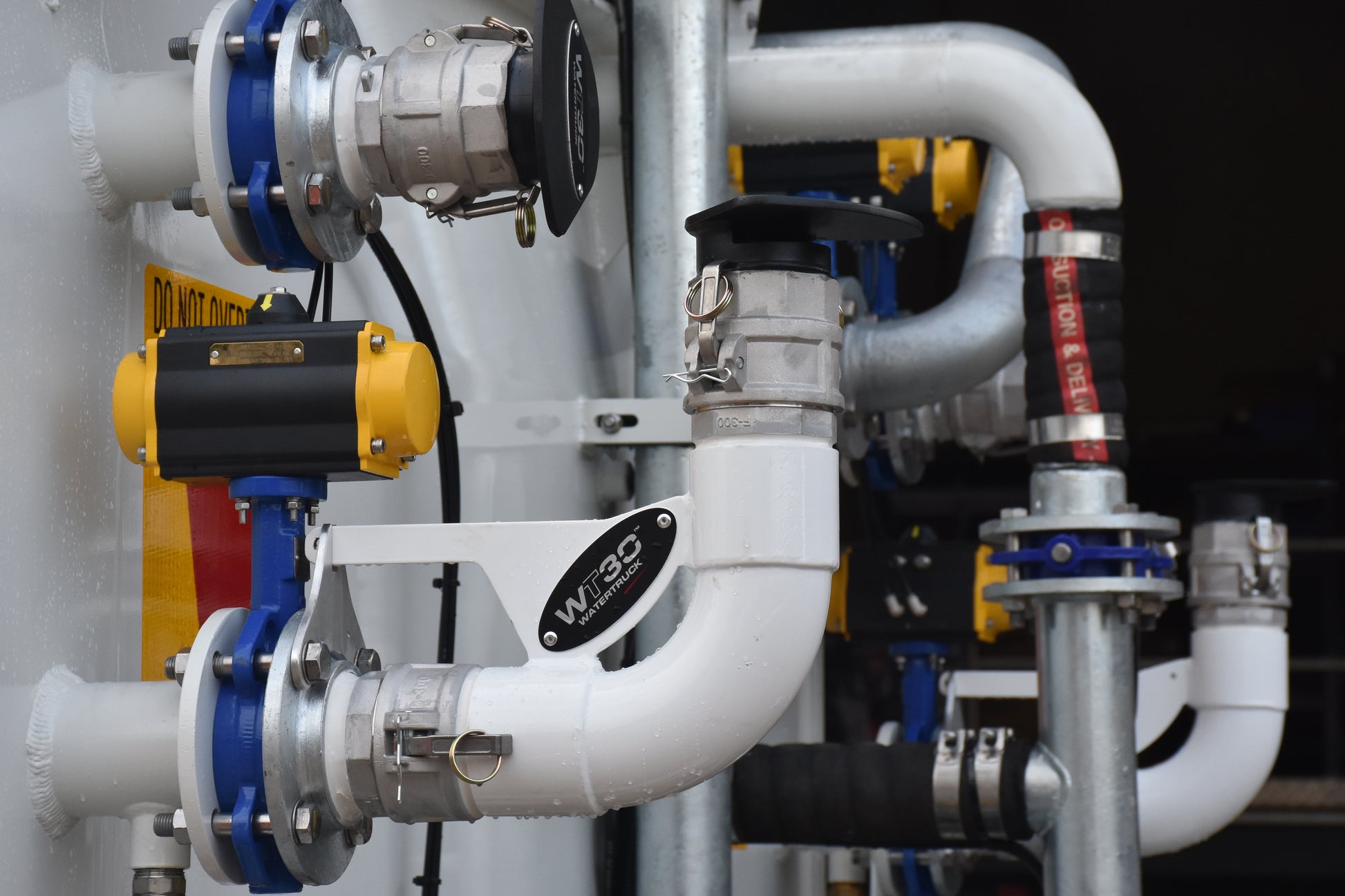

• All sprays controlled by reliable double-acting pneumatic butterfly valves

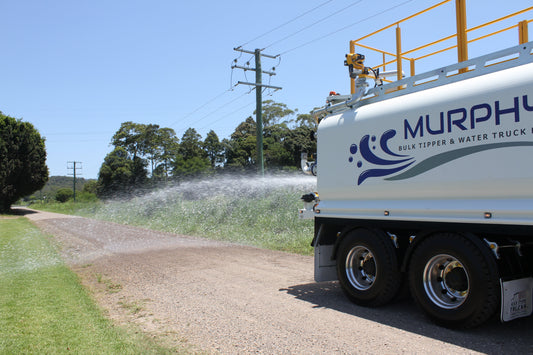

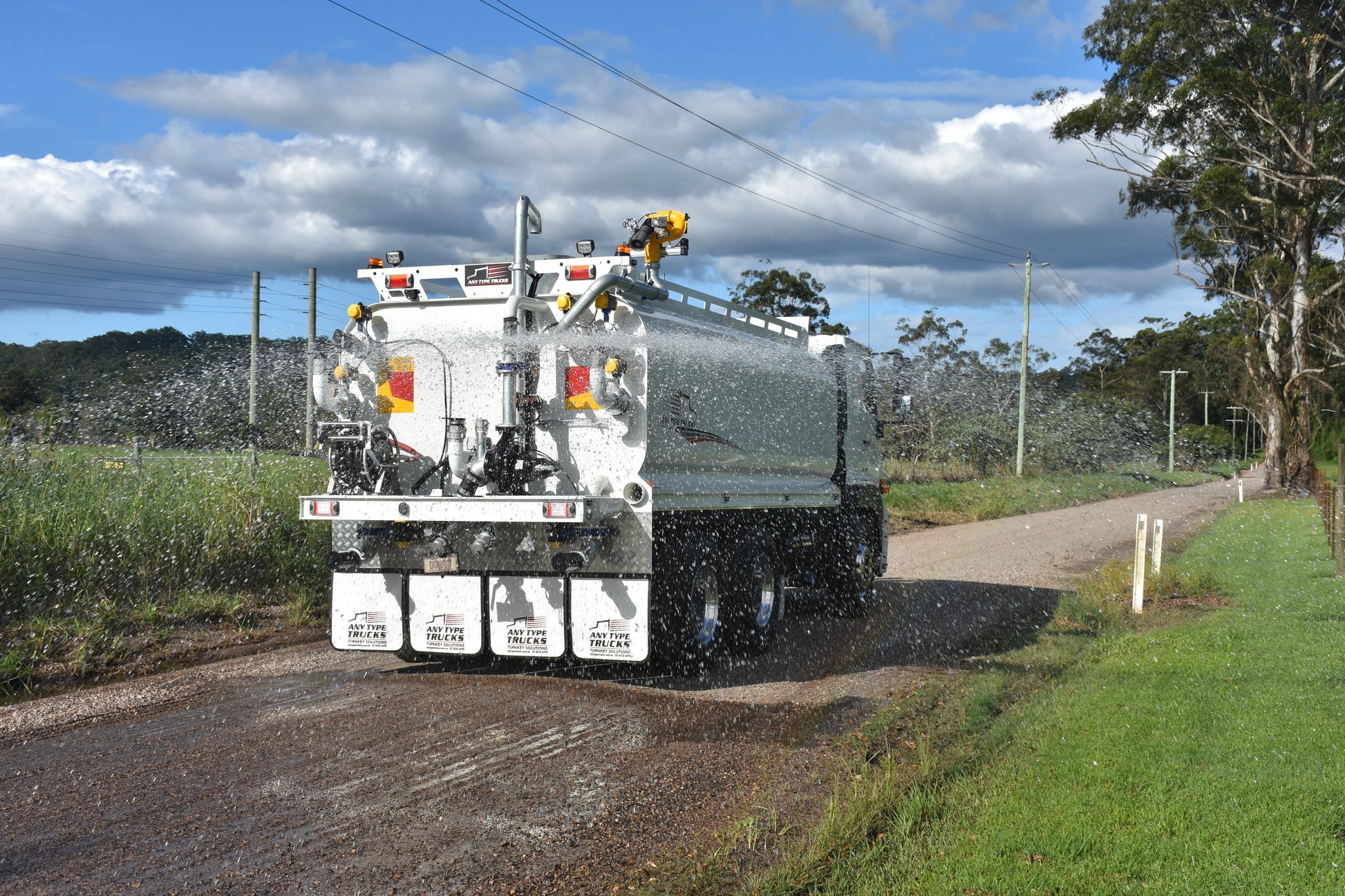

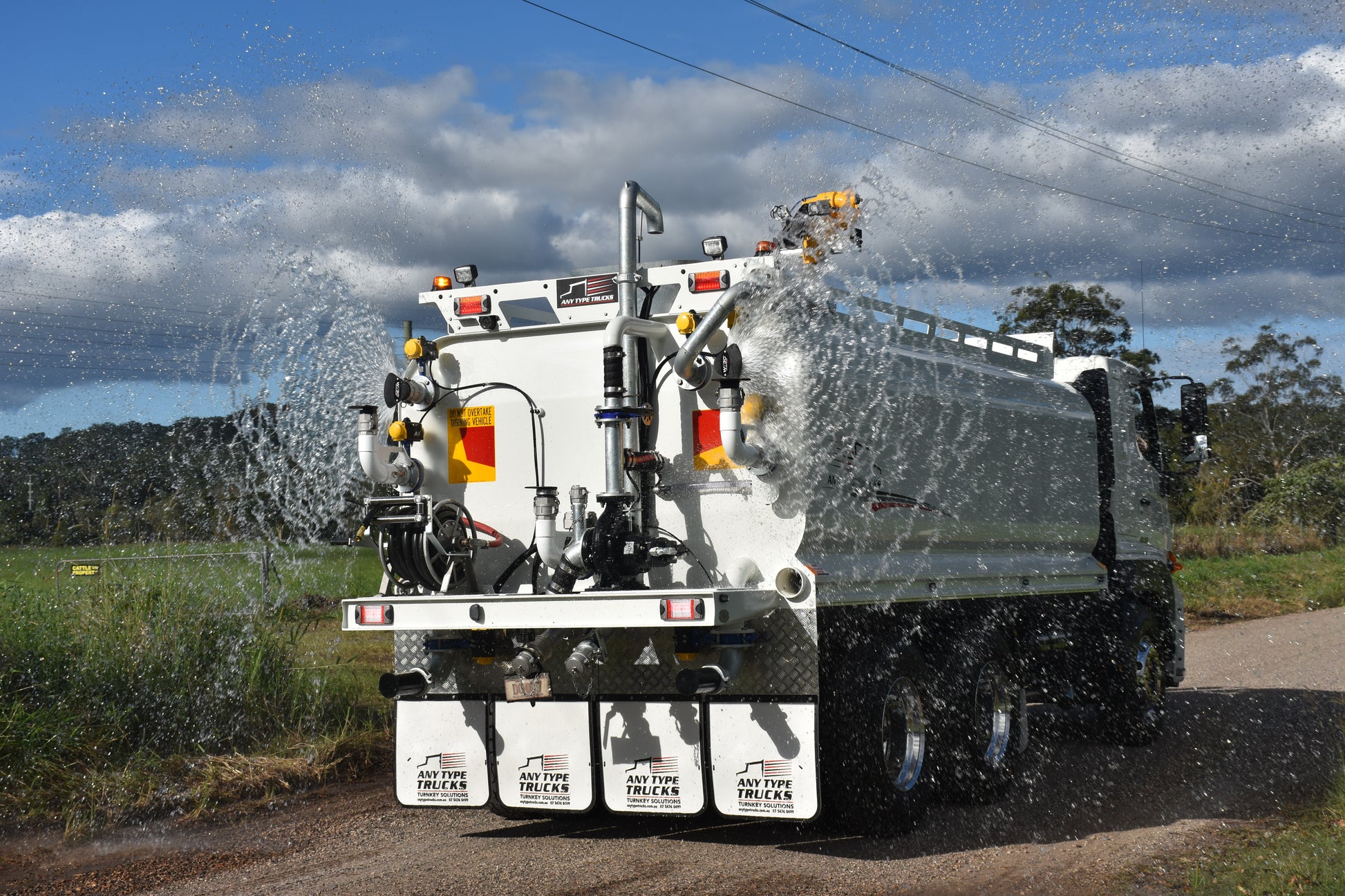

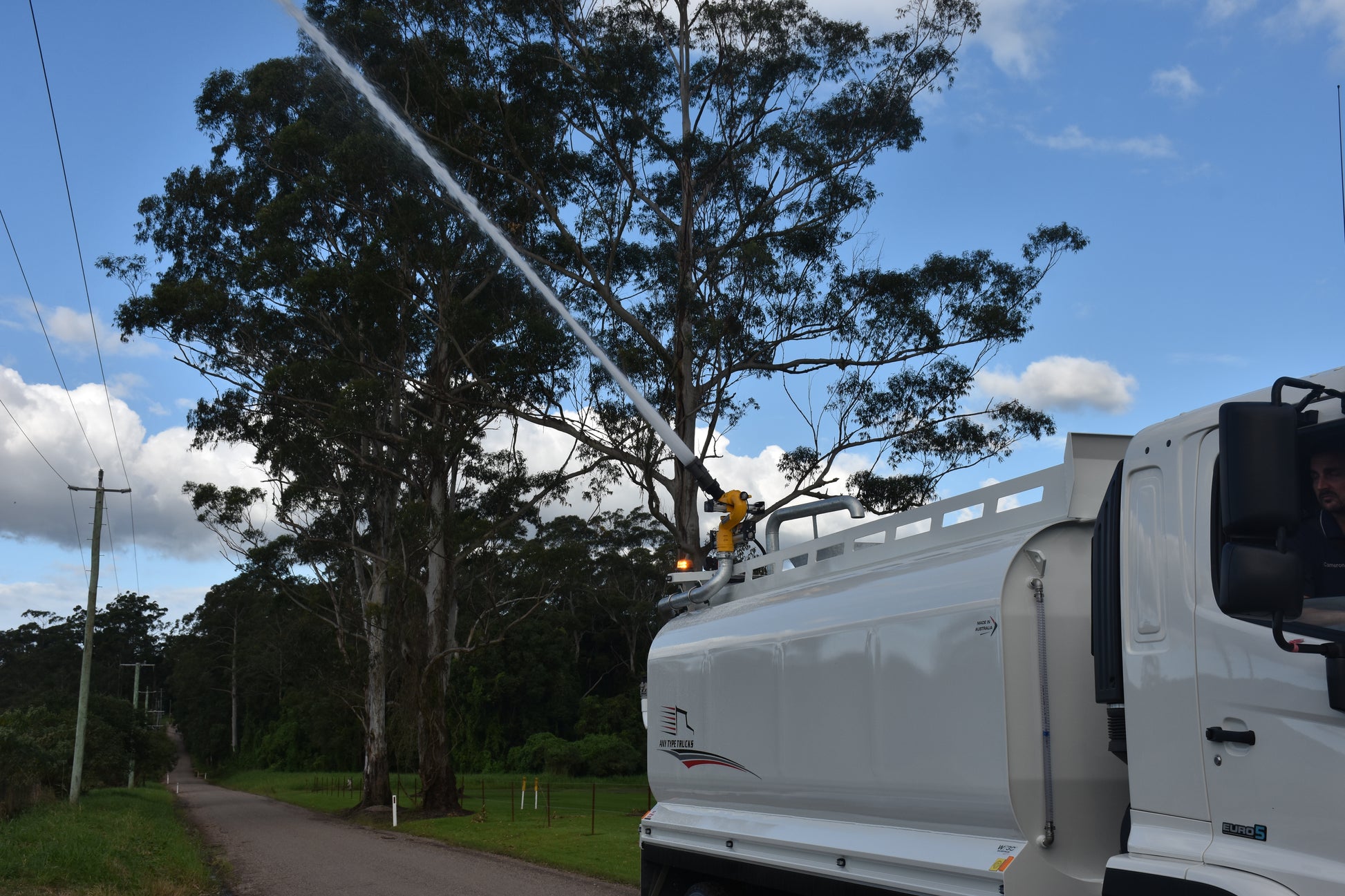

• T-Rex Electric Water Cannon – Australian made

  • Joystick-controlled

  • 340-degree rotation and 60-degree elevation

  • Upgrades available to pneumatic or hydraulic cannon systems

Operations System

• Electric over pneumatic control system

• In-cab control panel with variable flow rate control

• Emergency stop switches fitted in-cab and externally (option to downgrade if not required)

Chassis Integration

• Subframe mounted in accordance with VSB-6 and NCOP

• Tank rear pin-mounted to allow for chassis torsion

• Front rubber mounting blocks, side guides, and load-rated anchor points

• Markings applied in accordance with relevant ADRs

Electrical and Lighting

• High and low-mounted ADR-compliant HELLA tail lights

• HELLA LED clearance lights

• Reverse squawker (audible warning)

• 2 x HELLA LED rear work lights

• 2 x HELLA rear-mounted amber flashing beacons

• 1 x HELLA front cab-mounted amber flashing beacon

• All wiring tinned, soldered, loomed, and heat-shrink sealed for durability and longevity

Compliance

• Built in accordance with ADRs, VSB6, and NCOP

• Meets general civil construction specifications

• Optional Mine Spec configuration available

Optional Extras

An array of upgrade options is available to meet specific site requirements, including Mine Site Compliance and Safer Together specifications:

• Hydraulic-driven 3000psi pressure washer

• Additional spray heads (front, side, or rear configurations)

• Front road wash spray system

• Digital tank level monitoring system

• Dual battery and starter isolators

• Fire suppression kits

• Custom signage and load decals

• Mine-spec safety and compliance package

Customisation Available:
Speak to our team to configure your WT30 build to suit your project needs, site standards, or industry compliance expectations.

Notes

• Cab chassis is not included

• Images shown are representative only; final design may vary

• Support and documentation provided as part of project handover
