Build Review: UD Quon WT30 Water Truck

Build Review: UD Quon WT30 Water Truck

Built for Blake Machinery Group

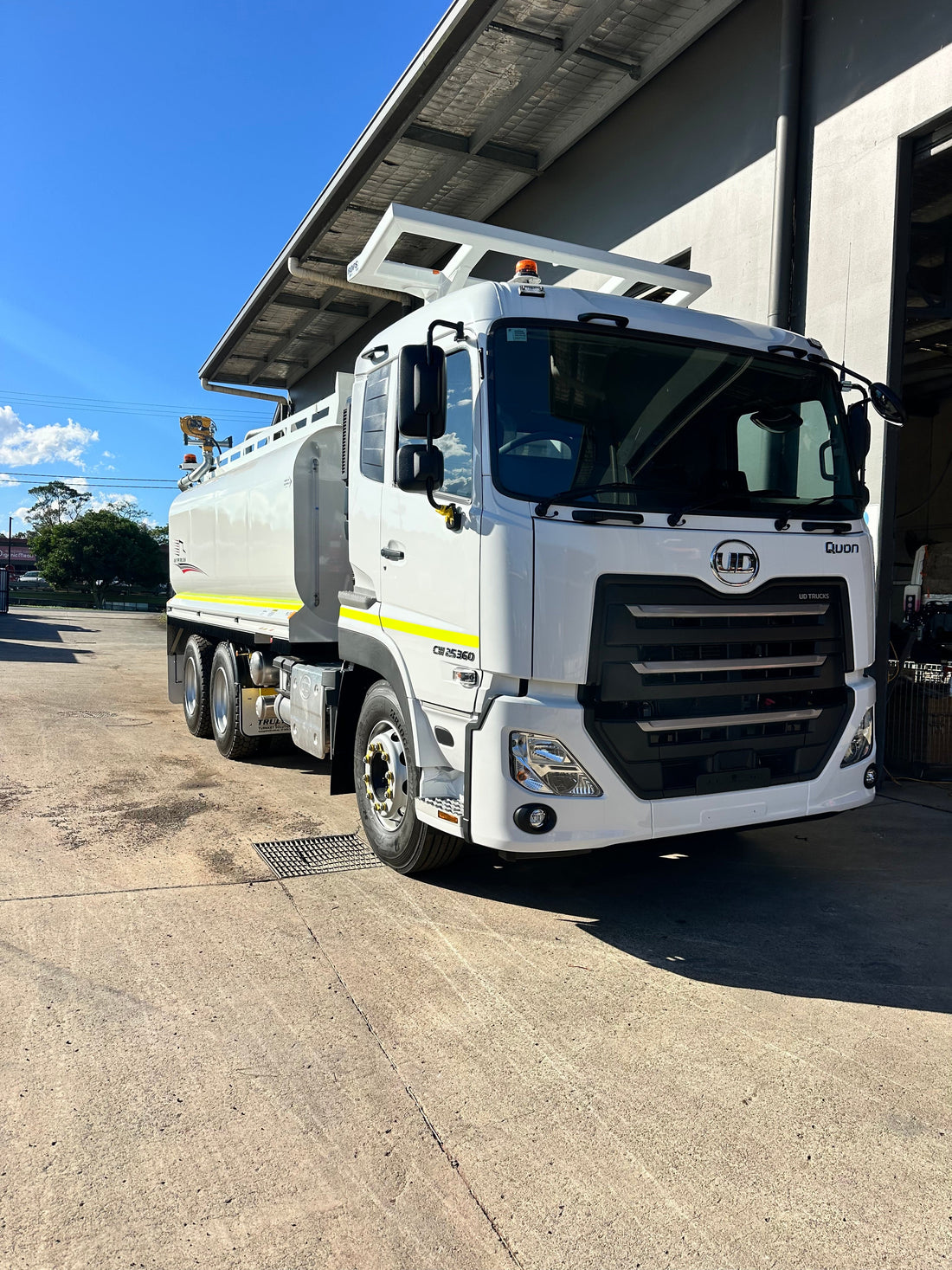

At Any Type Trucks, we don’t just build water trucks — we build tools that work hard, last longer, and present professionally. This WT30 Water Truck, built on the proven UD Quon CW 25 360 8x4 platform for Blake Machinery Group, reflects everything we stand for: utility, durability, reliability, and delivered with class and style.


🔧 Chassis & Platform – UD Quon CW 25 360

The Quon is one of the most refined heavy-duty Japanese platforms on the market. Key specs:

Engine: GH8F 6-cylinder 7.7L Euro 6

Power: 263 kW (357 hp) @ 2200 rpm

Torque: 1428 Nm @ 1200 rpm

Transmission: ESCOT-VI 12-speed AMT (automated manual)

Suspension: Electronic airbag with 8-bag rear axle setup (ECAS4)

GVM: 25,000 kg | GCM: 38,000 kg

Wheelbase (V spec): 5700 mm — ideal for long wheelbase tankers

Braking: Full disc brakes with EBS, ABS, UD Engine Braking, and Hill Start Assist

This spec allows us to maximise payload while meeting strict compliance and safety expectations across mine and civil worksites.

Supported by the Volvo Group Australia dealer network, UD Quon owners benefit from nationwide access to parts, service, and diagnostics. That means shorter downtimes, faster turnarounds, and confidence on every job.


💧 WT30 Water Tank Package – Mine Spec Configuration

This build features a Mine Spec WT30 Tank Package, tailored for high-demand civil and mining operations.

Key Specs:

14,000L Capacity – constructed from 6mm 350 grade steel

Low Centre of Gravity – tank profile designed in accordance with the Road Tanker Standard

Longitudinal Baffles – fitted in line with Safer Together guidelines for controlled surge and safe braking

Heavy-duty subframe – ADR and VSB6 compliant for maximum integrity

Spray & Cannon System:

Front & Rear Fan Sprays – pneumatic control from in-cab console

Gravity Dribble Bars – modular Victaulic-mounted bars for fast cleanout

3" Camlock Interchangeable Pressure Sprays – flexible setup for different site needs, quick to swap and service

Double-Acting Butterfly Valves – spec’d for long life and consistent seal under pressure

Pneumatic T-Rex Water Cannon – joystick-controlled from the cab

Curious why we run pneumatic? Here’s our breakdown on cannon types

3-Way Fill System:

Top Fill Funnel – for quick gravity fills from elevated tanks

Dam Suction Fill – fitted for remote and low-level water sources

Hydrant Fill with Air Gap – plumbed for compliant, pressurised on-site fills

Corrosion Protection Features:

Full-length tank guards shield the chassis from spray and overflow

Top-draining tank lid channels excess water off the rear during overfills — keeping it clear of critical chassis components

Here’s why that matters more than galvanising your tank

This package is built for hard use and long life — fleet-tested, mine-ready, and compliant without compromise.


⚙️ Operator Control & Ergonomics

Cab Layout: Full air-suspended cab, ISRI driver’s seat, dual armrests, adjustable everything

In-Cab Controls: Spray and cannon functions are mounted within the driver’s peripheral vision — so operators can activate controls without looking away from the road

Access: Compliant platform with grip tread, safety handrails, ladder access

Lighting: We’ve now standardised to HELLA LED work lighting across our tanks — delivering proven reliability and solid warranty backing from a trusted global brand

This shift was driven by feedback through our ISO-aligned Integrated Management System (IMS) and embedded Continuous Improvement programs.

Learn more about how we build better through continuous improvement

Operators stay comfortable and in control — reducing fatigue and improving productivity on long haul or high-demand spray runs.


🛠️ Safety & Compliance

Certification: NHVR VSB6 – Tanker (T1) compliant, load restraint engineered

Safety Features (UD): Lane Departure Warning, Traffic Eye Cruise, Blind Side Assist, Autonomous Emergency Braking, Electronic Stability Control, FUPS

Optional Spec: Mine safety pack including isolator, E-stops, beacon, and fall protection anchor points

Optional ROPS/FOPS Integration:
Where required, this WT30 platform can be fitted with certified Roll Over Protection Systems (ROPS) and Falling Object Protection Systems (FOPS) to meet mine safety specifications and site-specific risk controls.

We partner with All Industry Solutions to supply and integrate these protection systems, ensuring compliance with site standards and operator safety expectations.

The Quon brings class-leading safety, and we ensure every build meets the paperwork and the practical standards your business depends on.


🤝 Working With Blake Machinery Group

We had the opportunity to deliver this WT30 Water Truck to Blake Machinery Group, a respected Queensland-based fleet with a strong presence across civil, mining, and quarry operations.

Their focus on reliability and fleet presentation aligned well with our own values — from spray system layout to corrosion protection and site-ready compliance. The result was a truck built to slot seamlessly into a high-performance dry hire or service fleet.

Working with experienced operators like BMG pushes us to keep lifting our game — and we’re proud to support businesses that expect more from their equipment.

Visit blakemachinery.com.au to learn more about their fleet and services.


🧱 Built to Reflect Our Pillars

This water truck reflects what sets Any Type Trucks apart:

Utility – Fast fill, easy clean, no-fuss control

Durability – Heavy steel, full support subframe, premium seals and fittings

Reliability – Trusted driveline, modular spray gear, protected electrics

Class – Certified, documented, and ready for any site

Style – Finished to a high standard, branded for fleet presentation
